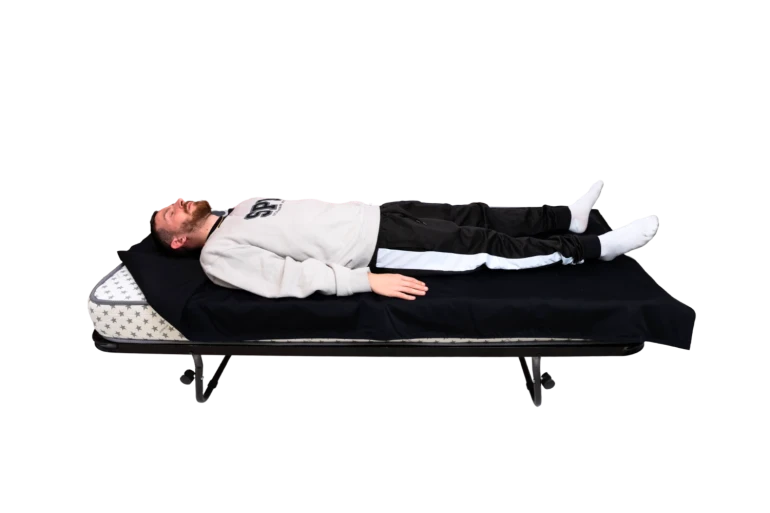

MATTRESS

MATTRESS

Real-time precision for more effective diagnostics and greater patient comfort

The Mattress system is designed to precisely measure the distribution and intensity of pressure between the body and a mattress - or any other contact surface.

Technical specifications

N° of Sensors Up to 1,728
Technology Piezoresistive
Max. Scan Speed Up to 100 hertz
Connection USB -WiFi
WiFi Range Up to 164 ft (50 m)
Pressure Range 0 – 2 PSI (0 – 103.4 mmHg)
Min. sensor size 1′′ x 1′′ (25.4 mm x 25.4 mm)
Minimum Thickness 2.5 mm
Max. Sensing Points Up to 64 x 27 lines
Max. Sensor Size 72.8′′ x 30′′ (185 cm x 76 cm)
Temperature Range 10° C – 40° C
Accuracy ± 10%
Repeatability ± 2%
Hysteresis ± 5%
Substrate Fabric

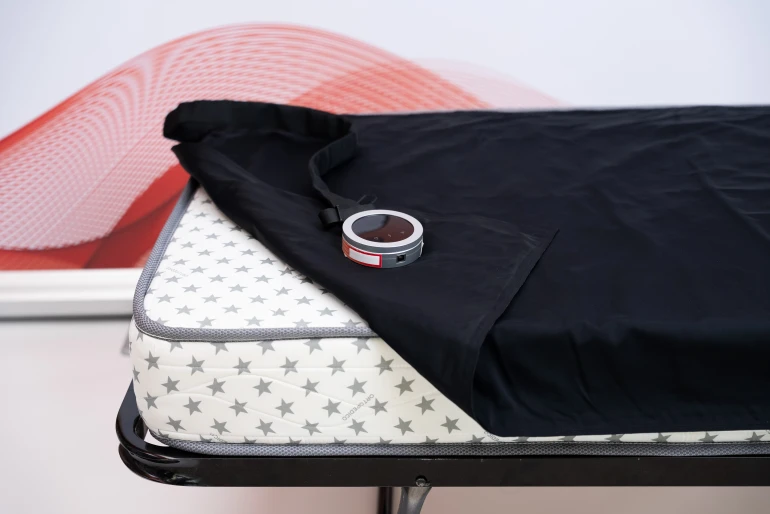

MATTRESS example usage

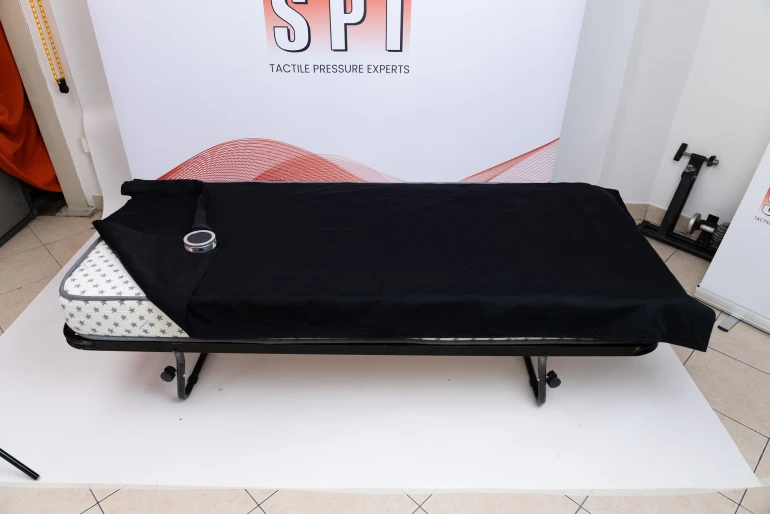

MATTRESS example usage

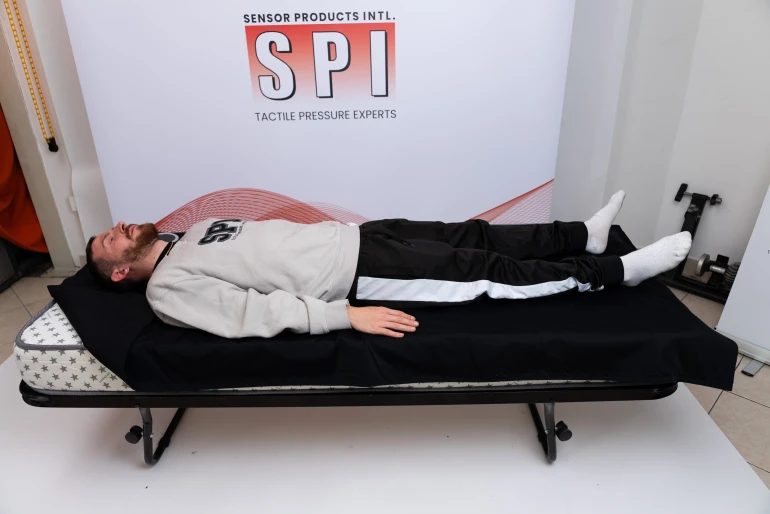

MATTRESS example usage with person

Features and functionality

By providing complete, simultaneous mapping of the entire body, it enables assessment of comfort, comparison of different materials, and real-time visualization of pressure changes with movement.

Featuring a flexible fabric that adapts to all body types, the system delivers reliable scientific data to optimize design, validate ergonomic performance, and effectively demonstrate the product’s value.

Benefits

  • Anthropometric Feature – reads and reports body attributes, and Somatotype
  • Chiropractic Diagnostic Package
  • Consumer Database – designed to track customers and salesman performance and response-to-sale ratios
  • Languages – software in Spanish, Chinese, German and French
  • Private Branding – name and indentia on hardware and software
  • Handheld Remote Control Device
  • Retail Environment Version – touchscreen panel and graphical user interfaces
  • Scientific Analysis Package
  • Wireless Capability
