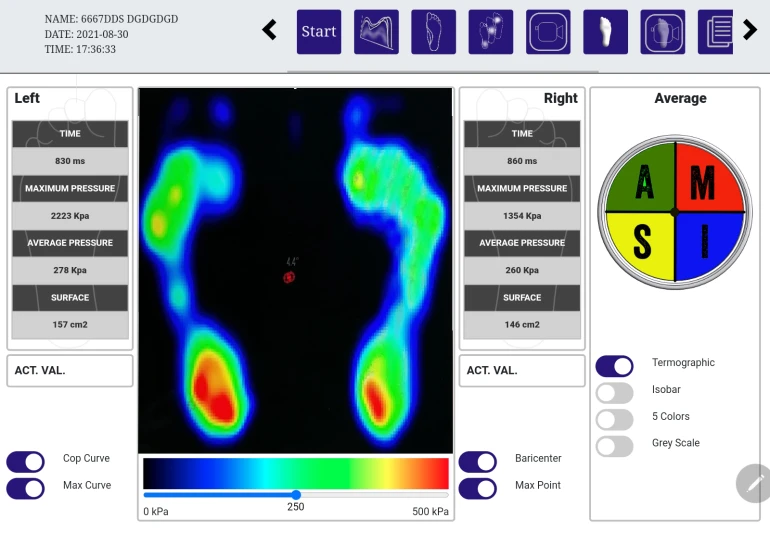

Using the app BIOMECH and WI-FI communication, once the evaluation is finished, you can have a quick summary of the main datas directly on the tablet. For a deeper analysis, you can access the protected area of the Biomech WEB LAB CLOUD to compare graphs, analysis and print the related reports for patients.

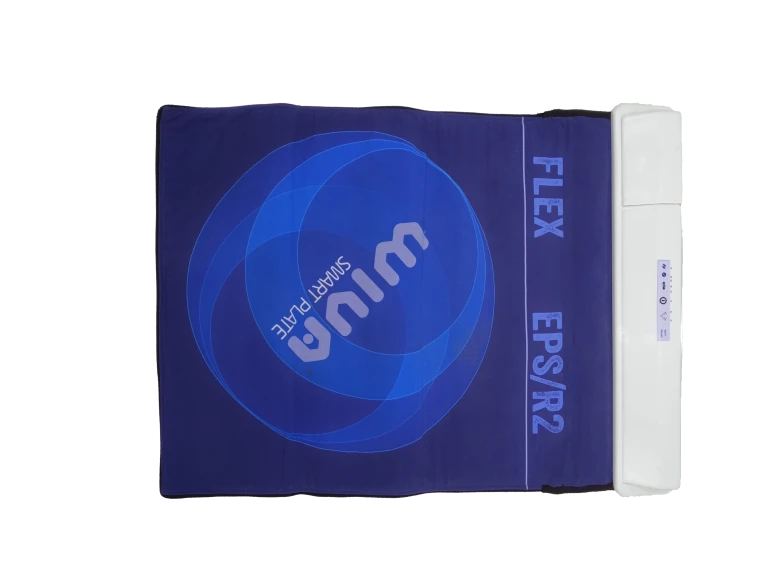

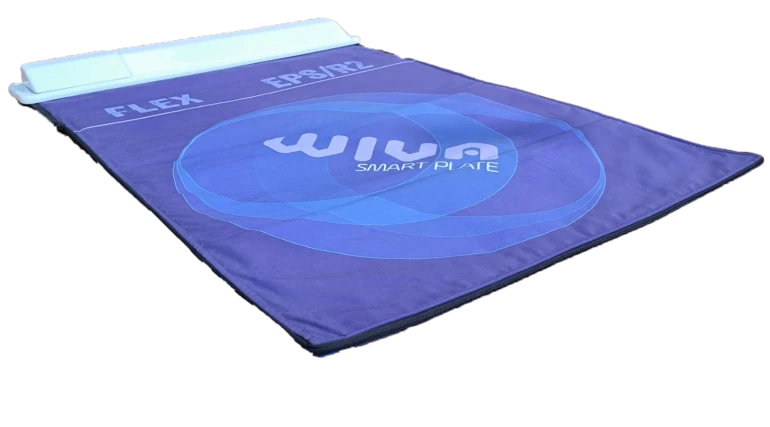

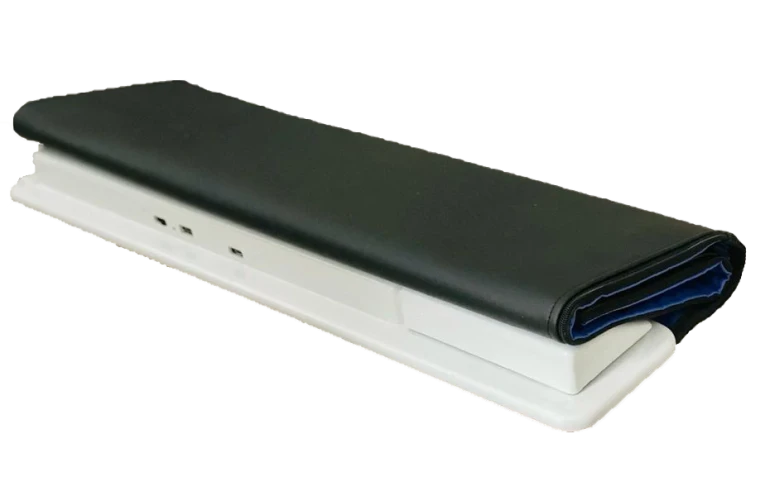

Sensors are made using the most innovative technology of materials “on fabric” fully rollable and weighing approximately 1kg total, the flex epsr2 will allow you an easy transport and rapid testing, both in static and in dynamics.
Information related to STATIC analysis:
- Load distribution (2D and 3D), anteroposterior and mediolateral;
- Maximum and average pressures;
- Center of Pressure (COP) position of each foot;
- Static angles and foot positioning;
- Foot support type;
- Determination of foot areas (surface / force / pressure);
- Stabilometric assessment (analysis of right/left/central barycenters, COP velocity and distance, barycenter ellipse oscillations).
Information from DYNAMIC analysis:
- Load distribution (2D and 3D);
- Maximum and average pressures;
- Contact time graph;
- Pressure–time integral;
- Peak pressure point curve;
- Gait phases;
- Load distribution between forefoot / midfoot / rearfoot;
- Load distribution of individual foot areas;
- Podalic helix analysis;
- Barycenter curve and sequence;
- Step video recording and definition of the characteristic average step;
- FOOT BALANCE analysis;
- Statistics and 3D visualization.
Made in Italy
