R-SERIES sensors

High resolution and sensitivity for next-generation tactile analysis

Thanks to the latest innovations in conductive ink printing, we’ve developed a sensor with minimal batch-to-batch variation, enhanced precision, and durability comparable to traditional hand tools.

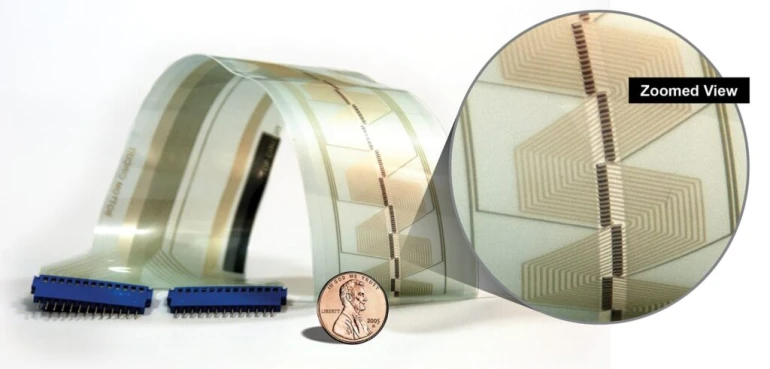

Tactilus® R-Series sensors are extremely thin and offer ultra-high spatial resolution — both visually and functionally mimicking human skin.

This biomimetic approach elevates surface-contact pressure measurement to an entirely new level.

The sensor features a matrix of interlaced lines, enabling up to 4,608 independent sensing points.

Tactilus® scientific software (for Windows®) communicates with the sensor at speeds of up to 1,000 Hz — fast enough to capture and analyze impact forces with high accuracy.

Technical specifications

Technology	Printed Resistive Ink
Max. Scan Speed	Up to 800 FPS
Pressure Range	0.5 – 500 PSI (0.035 – 49 kg/cm2)
Min. sensor size	0.03 in x 0.03 in (0.8 mm x 0.8 mm)
Minimum Thickness	10 mils (0.01 mm)
Minimum Spacing	0.01 in (0.5 mm)
Max. Sensing Points	4,608
Max. Sensor Size	16 in x 36 in (40 cm x 91 cm)
Drift	10% per log (time scale)
Temperature Range	-15°F to +131°F (-26°C – 55°C)
Accuracy	± 10% F.S.
Repeatability	± 2%
Repeatability Error	± 3%
Hysteresis	± 5%
Substrate	2 mil Myler – thinnest PET (0.05 mm)
Non-linearity	± 1.5%
Calibration	NIST Traceable

Common applications

Interface with the human body: Grip pressure, ergonomics, joint analysis
Packaging: Heat sealing, nip pressures, lamination
Automotive: Door seals, fuel cells
Electronics: Heat sinks, pressure coupling, lamination, LCD bonding, batteries
Aerospace: Bonding of composite materials

Main advantages

Ultra-thin, down to just 3 mil (0,076 mm)
Fast production times and low engineering costs for customized solutions
Calibrated sensors with NIST traceability, to ensure precision and certified reliability

Thanks to their ultra-thin yet highly durable design, Tactilus® R-Series sensors can operate for tens of thousands of cycles — even in harsh industrial environments — ensuring consistent performance and long-term reliability.

Fully compatible with all Tactilus® hubs, they provide exceptional operational flexibility based on configuration and specific customer requirements.

Combining customization, cost-effectiveness, and ease of use, R-Series sensors bring surface pressure mapping technology to applications where it was once considered impractical — or even impossible.

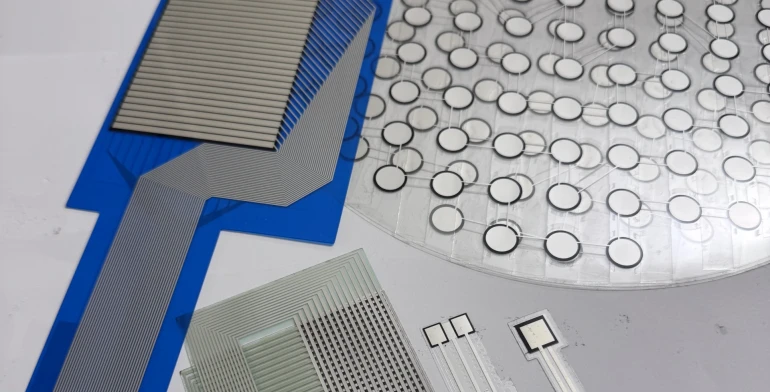

R-Series sensors are available in standard versions – with specifications available in the flyer – or customizable according to customer needs.

For users looking to integrate the sensor into custom control systems, full documentation for direct sensor control is available.

Discover R-SERIES sensors in action!

Want to better understand how R-SERIES sensors can integrate into your projects?

Book an online demo with one of our technicians.

During the session, we will showcase the features of the R-SERIES sensors and their dedicated software, provide real-world application examples, and give you all the information you need to evaluate the solution best suited to your needs.

Book your Online Demo

We are here to guide you in selecting and integrating the most effective technology for your operational environment.
