H-SERIES pressure sensors NANO-POLYMER CORE

H-SERIES sensors

H-SERIES Sensors NANO-POLYMER Core

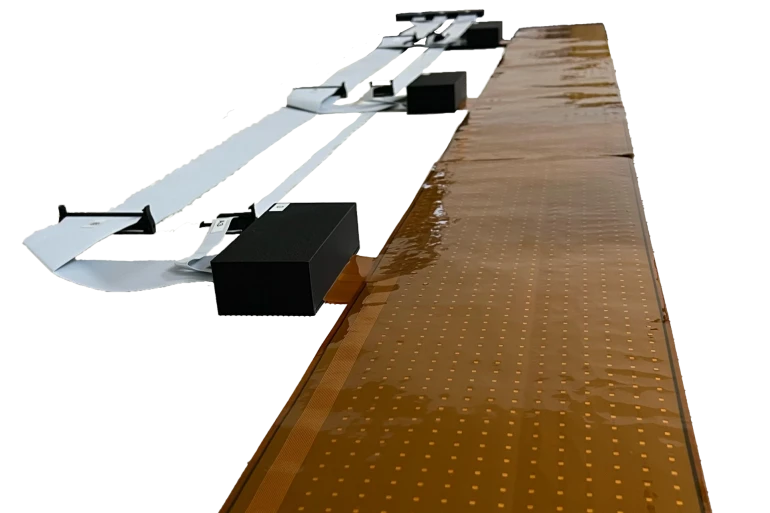

Tactilus® H Series sensors enable real-time detection and recording of pressure conditions between two contacting or impacting surfaces.

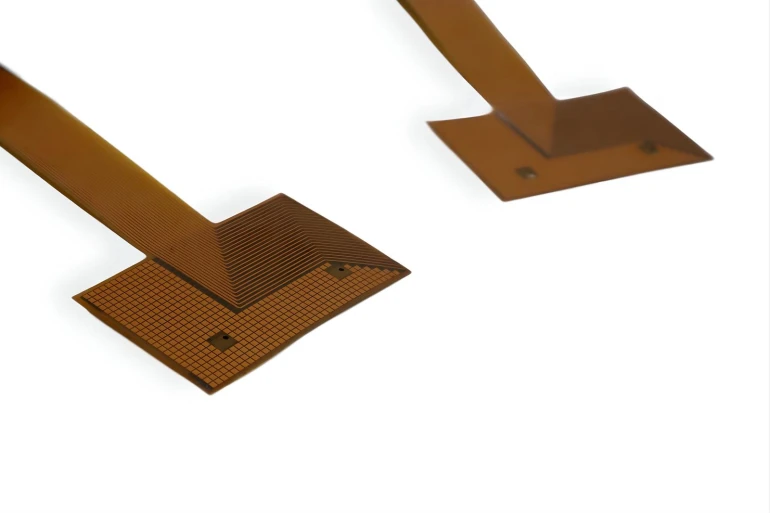

The paper-thin sensor is placed directly at the contact interface, measuring and recording both pressure distribution and intensity. Leveraging the latest advancements in nano-polymer materials, we have introduced the world’s first nano-polymer-based surface tactile sensor.

This innovation delivers greater resistance to high temperatures, enhanced precision, reduced drift, and improved repeatability—providing more reliable and accurate surface mapping analyses than ever before.

Technical specifications

Technology	Nano-polymer Composite
Pressure Range	0 – 350 PSI (0 – 25 kg/cm2)
Min. sensor size	From 0.04 in. (1 mm)
Minimum Thickness	16 mil (0,4 mm)
Max. Sensing Points	Up to 4,608 total
Max. Sensor Size	1000x1400 mm
Temperature Range	Up to 70°C
Accuracy	± 10% F.S.
Repeatability	± 2
Repeatability Error	± 3
Hysteresis	± 5
Non-linearity	± 1,5

Common applications

Interface with the human body: Grip pressure, ergonomics, joint analysis
Packaging: Heat sealing, nip pressures, lamination
Automotive: Door seals, fuel cells
Electronics: Heat sinks, pressure coupling, lamination, LCD bonding, batteries
Aerospace: Bonding of composite materials

Main advantages

Modular, high-precision technology for surface pressure sensing.
H-Series sensors are available in standard versions—with specifications available in the flyer—or customized to meet customer needs.

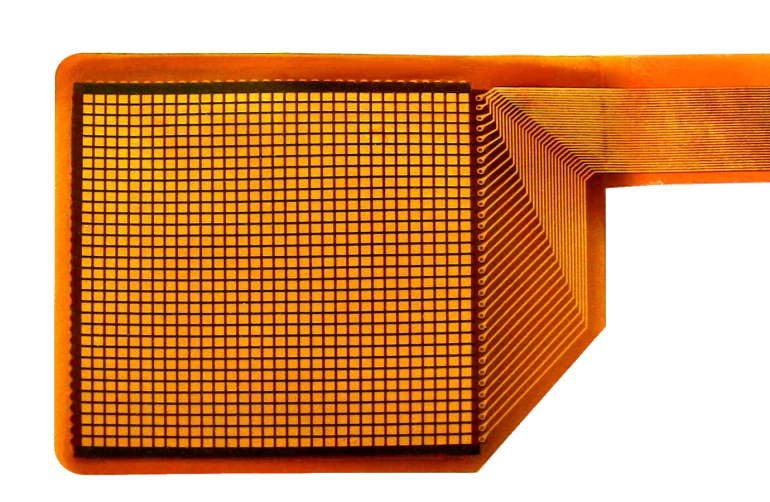

The Tactilus® H Series is a matrix surface tactile sensor—an “electronic skin” capable of detecting and interpreting the distribution and intensity of pressure between two contacting surfaces.

Collecting data is processed through powerful Windows® software for advanced analysis.

Each Tactilus® H sensor is manufactured to exacting tolerances, individually calibrated, and serialized for quality assurance.

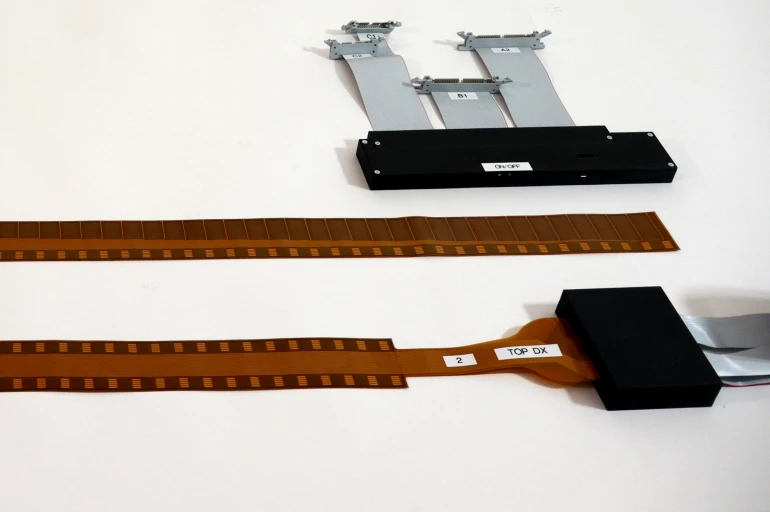

Its modular architecture enables portability, scalability, and simultaneous data collection from up to four independent sensors.

Depending on configuration and customer requirements, H-Series sensors can be connected to either the Large or Small Tactilus® hub, providing enhanced operational flexibility.

The Tactilus® software employs advanced mathematical algorithms to intelligently separate signal from noise, while sophisticated electronic shielding ensures optimal resistance to interference, temperature variations, and humidity.

Modular, high-precision technology for surface pressure sensing.

H-Series sensors are available in standard versions—with specifications available in the flyer—or customized to meet customer needs.

Discover H-SERIES sensors in action!

Want to better understand how H-SERIES sensors can integrate into your projects?

Book an online demo with one of our technicians.

During the session, we will showcase the features of the H-SERIES sensors and their dedicated software, provide real-world application examples, and give you all the information you need to evaluate the solution best suited to your needs.

Book your Online Demo

We are here to guide you in selecting and integrating the most effective technology for your operational environment.
