A-SERIES sensors

A-SERIES Pressure analysis - from millimeter-scale details to large surfaces

Thanks to the latest advancements in fabric-based resistive touch-sensor technology, Tactilus® A Series sensors introduce a new generation of surface pressure mapping solutions: thinner, more durable, more affordable, and, above all, exceptionally sensitive.

Technical specifications

Technology	Resistive textile
Pressure Range	0.1 – 200 PSI (0 – 4 KG/CM2)
Min. sensor size	0,3x0,3 mm
Minimum Thickness	39 mil (1 mm)
Minimum Spacing	0,2 mm
Max. Sensing Points	4608 (can be increased for custom configurations)
Temperature Range	23°F / 104°F (-5°C / + 80°C)
Accuracy	± 10% F.S.
Repeatability	± 5
Repeatability Error	± 3
Hysteresis	± 5
Non-linearity	± 1,5%
Calibration	NIST Traceable

Common applications

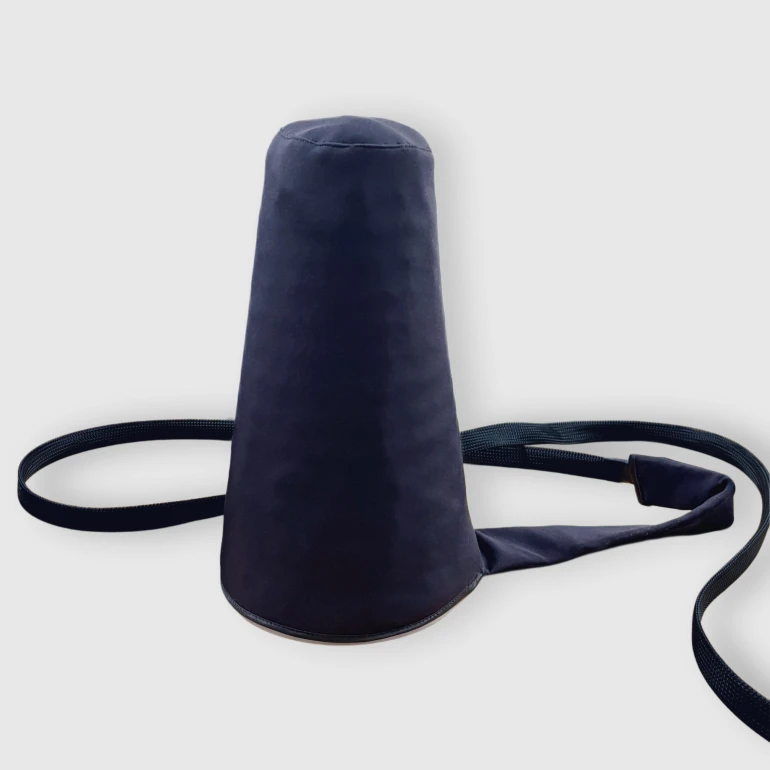

Interface with the human body: Grip pressure, ergonomics, joint analysis
Packaging: Heat sealing, coupling pressures (nip), lamination
Automotive: Door seals, fuel cells
Electronics: Heat sinks, pressure coupling, lamination, LCD bonding, batteries
Aerospace: Bonding of composite materials

Main advantages

Extremely low cost
Ultra-thin
Fast production times and low engineering costs for customized solutions
Calibrated sensors with NIST traceability, to ensure precision and certified reliability

In ergonomic engineering and human-device interaction, pressure measurement is essential yet often overlooked.

Tactilus® A Series sensors detect pressure across multiple areas of the body or surface simultaneously, providing a scientific, reliable, and user-friendly tool.

Designed to support engineers, researchers, and technicians, these sensors deliver an optimal balance of sensitivity and versatility, supporting innovation across diverse sectors— medical, industrial, automotive, ergonomic and beyond.

With an activation force as low as 0.1 PSI (0.07 kg/cm²), these sensors are among the most sensitive currently available on the market.

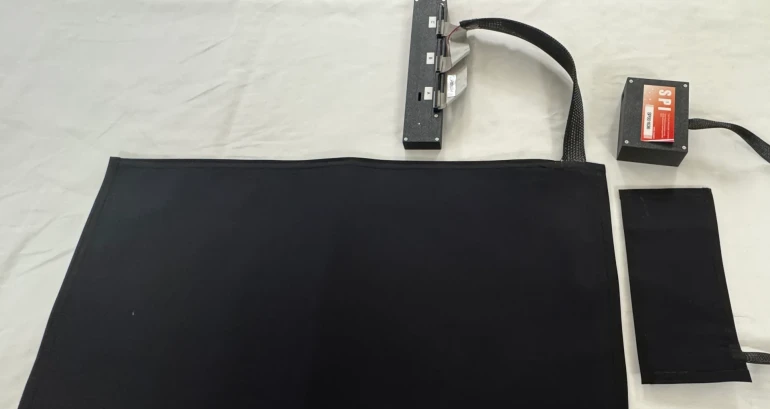

Their versatility is further enhanced by integration with miniature Bluetooth wireless transmitters, making the system ideal for applications spanning large surfaces (e.g., 1 m × 5 m) as well as highly localized areas (e.g., 0.3 cm × 0.3 cm).

Each sensor in the Tactilus® A Series consists of a crisscross network of lines that form unique, high-intensity sensing arrays, ensuring precise and detailed pressure distribution measurement. Depending on the application requirements, sensors can be connected to various hubs, providing maximum operational flexibility.

For users wishing to integrate the system into their own software environment, comprehensive documentation for direct control is available.
